Description

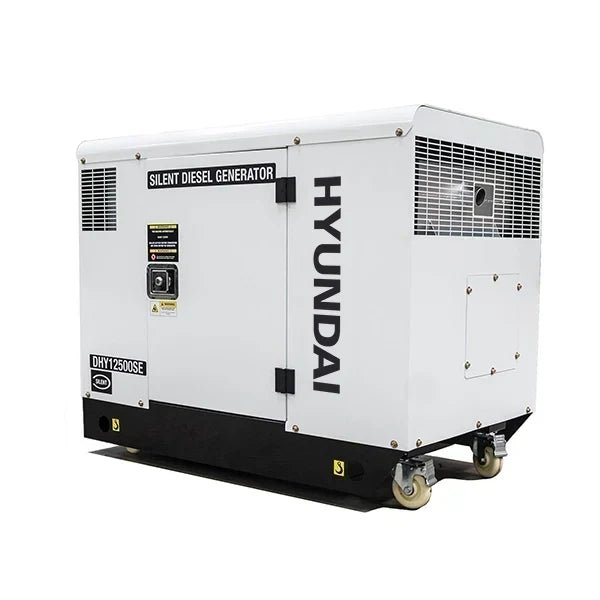

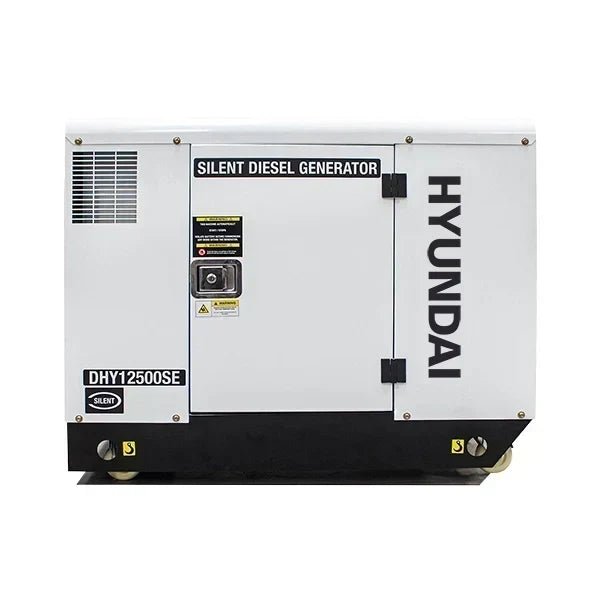

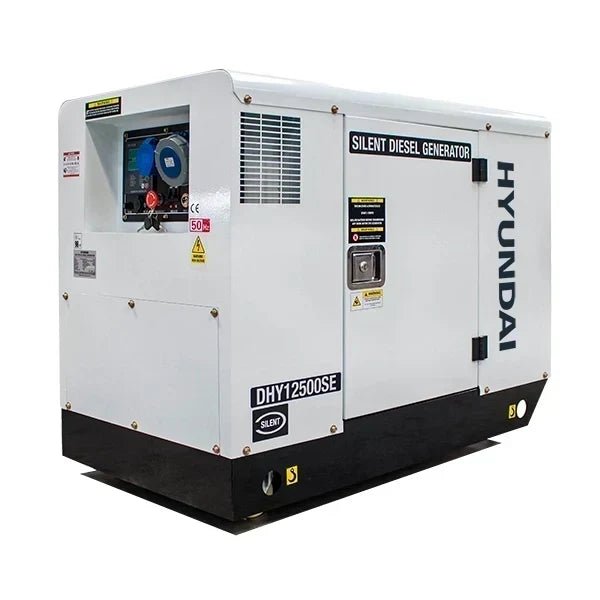

Get dependable power for outages, jobsites and RV trips. The Hyundai DHY12500SE 10kW Diesel Standby Generator is built for steady output and long run times when you need backup power most.
US version: built for US 60Hz power with US-standard outlets.
Features:
- Single-phase backup diesel generator: Produces up to 12.5kVA / 10kW of power
- Long-run 60L diesel tank: Saves you from having to keep topping up the generator
- Fitted with an AVR alternator: Produces a smooth, clean energy output
- ATS compatible: Able to automatically transfer power to the generator in the event of a power cut
- Low noise generator: Produces 65 to 70db @ 7m
- Peace of mind: 1 year / 1,000 hours warranty* (terms apply)
Technical Specification:
- Model – DHY12500SE
- Rated/Prime kVA* – 12.5
- Rated/Prime kW – 10
- Max/Standby kVA* – 13.75
- Max/Standby kW – 11
- Phase – Single
- Voltage – 230
- Outlets: US-standard 120V/240V receptacles (US version)
- Rated Speed (RPM) – 3000
- Frequency (Hz) – 50
- Max/Continuous Current (Amps) – 47.83/43.48
- Power Factor (Cosφ) – 1
- Fuel/Power Source – Diesel
- Fuel Tank (Litres) – 50
- Runtime (Hours) @ 100% Load – 12
- Noise Level @ 1m 75%81.5 load (dB) – 81.5
- Noise Level @ 7m 75% load (dB) – 70

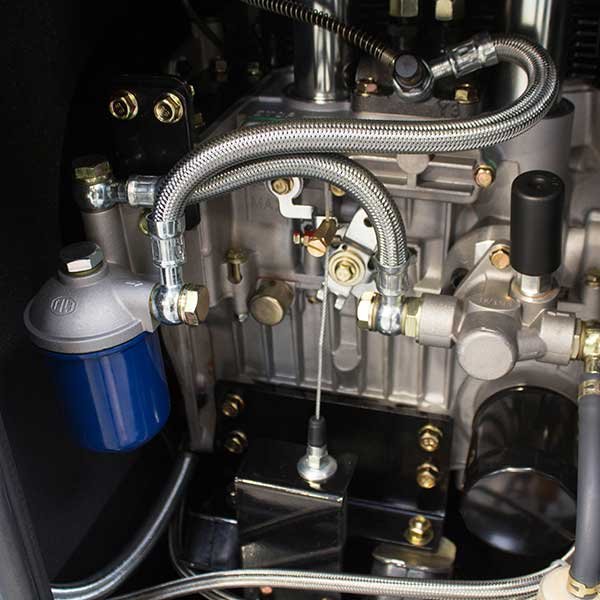

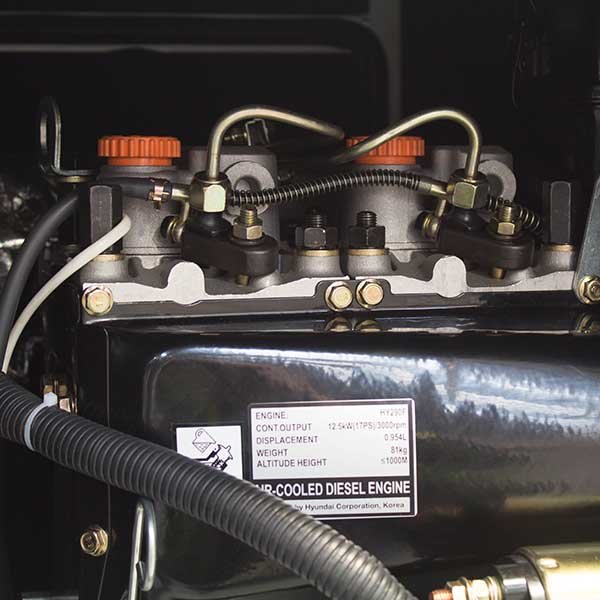

- Diesel Engine Model – HY290F
- Power Output (hp) – 20
- Engine Displacement (CC) – 954
- No. of Cylinders – 2
- Recommended Oil Type – 15w40 / 10w40
- Oil Capacity (Litres) – 3
- Oil Filter Part No. – 3049050901800
- Aspiration – Natural
- Fuel Regulation/Governor System – Mechanical

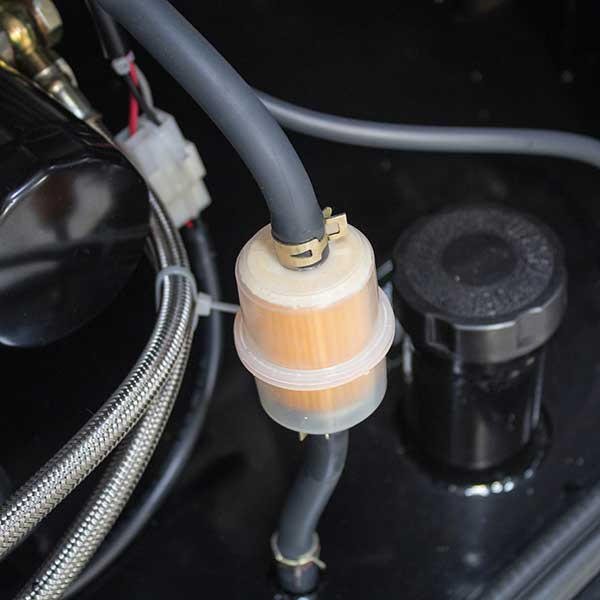

- Fuel Filter Part No. – 3049051001000
- Cooling Forced – Air-Cooled
- Breakers – Yes
- Alternator Type – Brushed
- Voltage Regulation – AVR
- Air Filter Part No. – 3049050700303
- Net Weight (kg) – 270
- Gross Weight (kg) – 290
- Wheel Kit? – Yes
- Dimensions L x W x H (mm) – 1175 x 695 x 1050
- Battery (Ah) – 45
- ATS / MTS Compatible – Yes
- Model EAN – 600231973526
- Warranty – 1 Year / 1000 Hours* (Terms apply)
- Assembly Required? – Yes – some assembly may be required
